TECHNIQUE · ADVANCED METALWORKING

100 %
precision.

Our ultra-modern laser cutting machine produces metal sheets from different material in various forms and sizes — with the highest precision and perfect edge quality.

  • 0.1 – 25 mm · material thickness
  • 0 € · no tooling cost
  • 1 – n · small lots stay economical
Request a quote TECHNICAL DATA
01 / FROM CUTTING TO FINISH

One part. Eight operations. One supplier.

Integrated production steps under one roof ensure short lead times, consistent quality and reliable delivery.

  1. 01 — CO₂ LASERTECHNIK

    Laser cutting

    Sheets of any material, in any shape and size, with the highest precision and perfect edge quality — thick or fine, 0.1 to 25 mm, entirely tool-free. That is how small batch sizes stay economical.

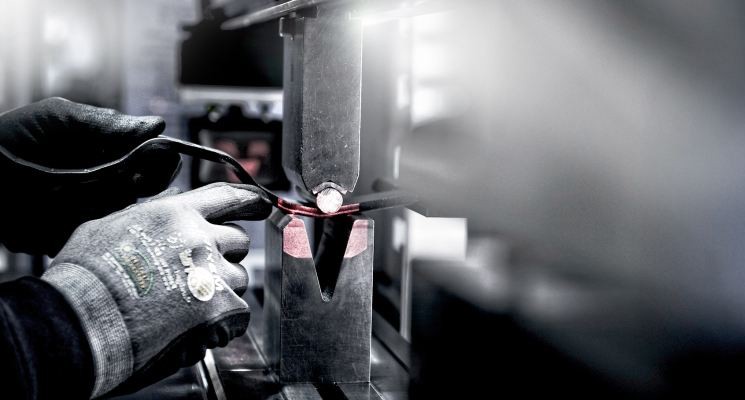

  2. 02 — BIEGEN

    Bending

    The press brake brings the workpiece into the right form. Radius and angle are set exactly to the part, not approximated.

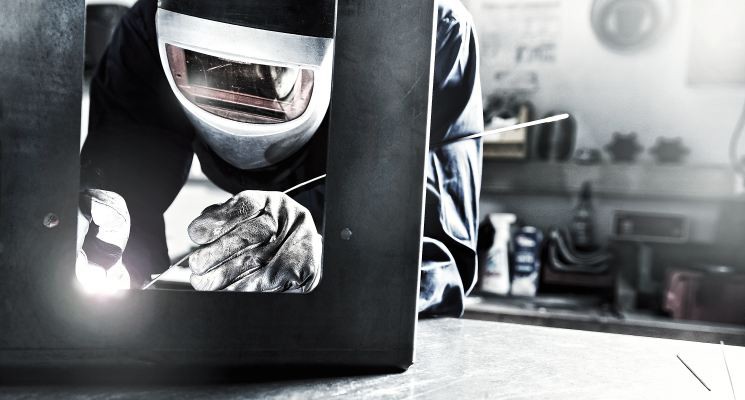

  3. 03 — SCHWEISSEN

    Welding

    Temperature and welding speed have to be tailored to each other. Our welders have years of proven experience in steel and aluminium.

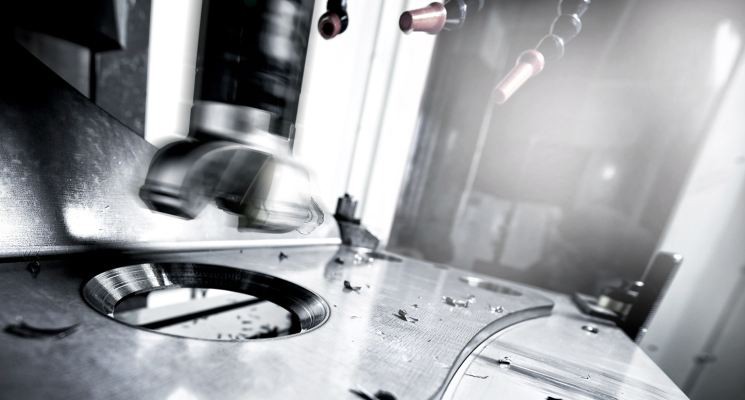

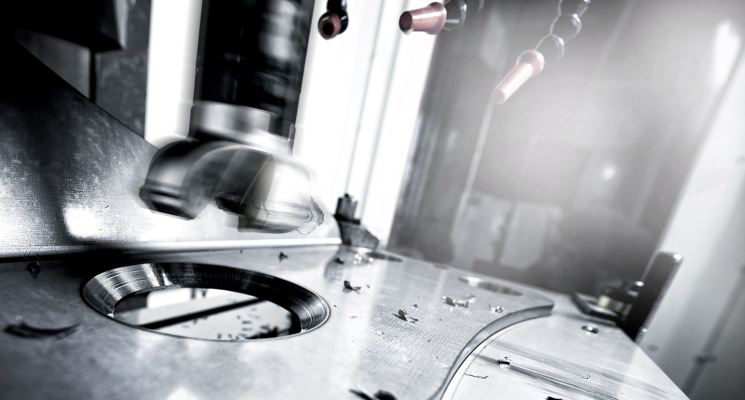

  4. 04 — MECHANISCHE BEARBEITUNG

    Mechanical processing

    Turning, milling, drilling and sawing — always tailor-made to the drawing. Precise, fast and economic.

  5. 05 — OBERFLÄCHENBEARBEITUNG

    Surface processing

    All surfaces are ground and deburred for an immaculate result. Sand and glass-bead blasting, coating, galvanising, phosphating and anodising are also possible.

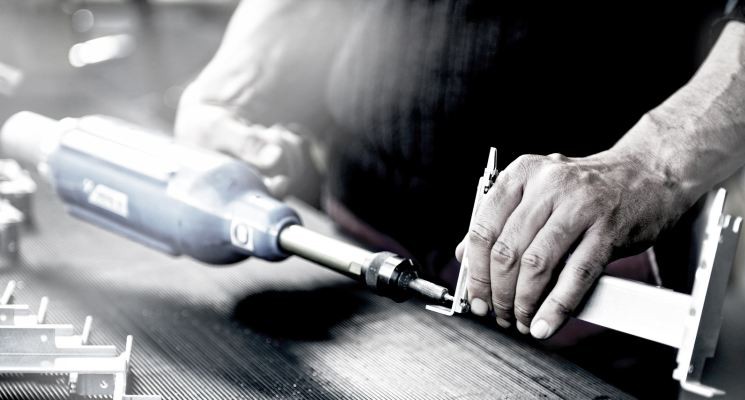

  6. 06 — MONTAGE

    Assembly

    Simple, fast and safe assembly solutions. On request we build the matching assembly jigs for your series.

  7. 07 — QUALITÄTSKONTROLLE

    Quality control

    Computerised process management makes every order traceable from goods receipt to dispatch. Nothing leaves the floor unmeasured.

  8. Storage & shipping
    08 — LAGER / VERSAND

    Storage & shipping

    Material and finished parts are stored and dispatched from the same site.

02 / TECHNICAL DATA

Check it against your drawing

The numbers a buyer needs before sending an enquiry. Further capacities on request.

Process Capacity
Laser cutting — sheet thickness 0.1 – 25 mm
Welding — steel, stainless, aluminium MIG / MAG / TIG
Batch size 1 – series
Materials
Baustahl S235 / S355Edelstahl 1.4301 / 1.4571AluminiumVerzinktes Blech
Finishing
GrindingDeburringSand blastingGlass-bead blastingPowder coatingGalvanisingPhosphatingAnodising
File formats accepted
STEPDXFDWGIGESPDF

One part. Many steps. Perfect result.

From the certified blank to the inspected, packed component — every operation happens on 3,500 m² in Meckenbeuren.
